The Flex Hive

Beekeepers need a way to cut heavy lifting and disturbance without abandoning familiar gear, yet most hives force an either/or choice between frames and top bars.
The Flex Hive fills that gap with a hybrid horizontal system that keeps frame productivity, adds back-friendly, bee-centric simplicity
It even lets any beekeeper produce and sell top-bar nucsas a niche, higher-margin offering.

The Flex Hive is a flexible, dual-format hive that marries Langstroth frames and natural top-bar comb in one hive body.
It keeps what works from Langstroth practice, then adds the comfort, manageability, and cost-effectiveness of a horizontal top-bar hive (HTBH) format.
It can be 100 percent horizontal, or feature a combination of vertical, stackable, frame-based boxes and a simpler horizontal top-bar box.
It marries frame-based conventional productivity with the lighter lifting, ergonomic, minimal-disturbance, and budget-friendly nature of top-bar beekeeping.
It pairs easy liquid honey extraction with effortless comb honey production, and allows dual production of Langstroth and standardized top-bar nucs.
You can start with frames and introduce top bars, or vice-versa and transition the colony without disruption.
In a matter of minutes, try both styles side by side and gain the strenfths of both without giving anything up

4 Configurations

100% Horizontal
- single Langstroth box (5, 8 or 10 frames) with single HTBH NUC box
- single Langstroth box (5, 8 or 10 frames) with single or double HTBH

Vertical to Horizontal combo
- Multiple-level Langstroth stack (5, 8 or 10 frames) with single Top-Bar NUC box
- Multiple-level Langstroth stack (5, 8 or 10 frames) with single or double full size Horizontal Top-Bar hive

It greatly reduces lifetime cost in equiment and storage of boxes and frames.
It provides true hybrid flexibility: it allows beekeepers to keep using Langstroth frames while adding top bar combs and colonies to their apiary, so they may populate or exchange resources with each hive style.
It provides operational versatility by allowing beekeepers to create splits, brood breaks, and queen rearing inside either box.
It lowers the beekeeper's lifting work by mimizing the manipulation of stacked boxes.
Free hanging, natural comb on bars bars supports honey bee health and treatment-free practice.

How to adapt Langstroth to a standardized horizontal top-bar hive

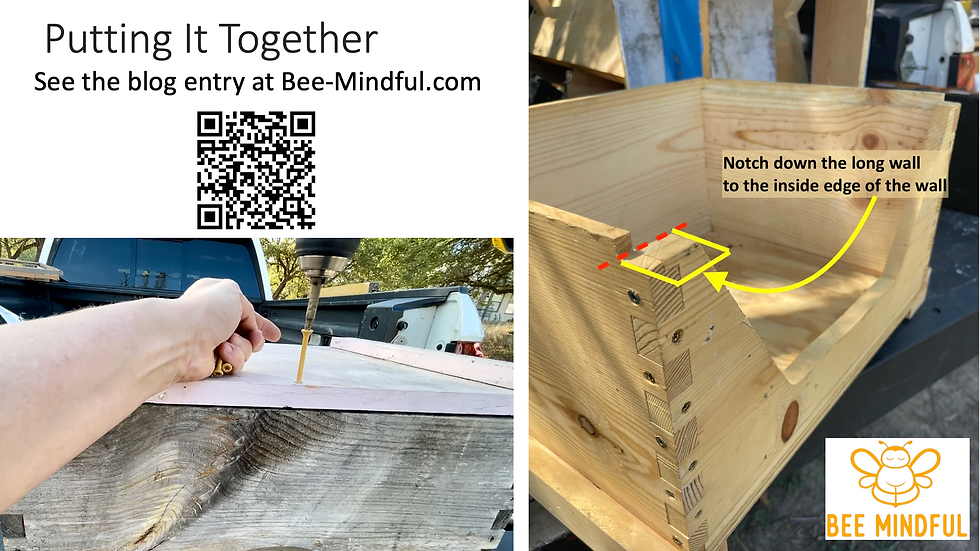

How to put it together - Cut the notch and the matching top-bar opening

Single deeps to horizontal double Top-Bar Hive (full size)

How to adapt Langstroth to a standardized horizontal top-bar hive

1/14
